Biochemical Analyzer Fuji Film
FDC4000

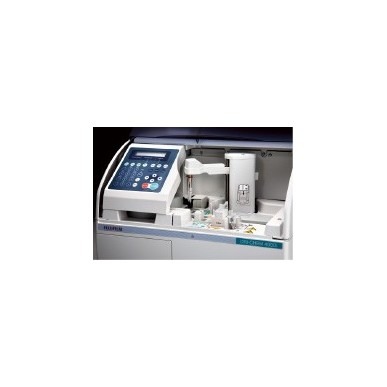

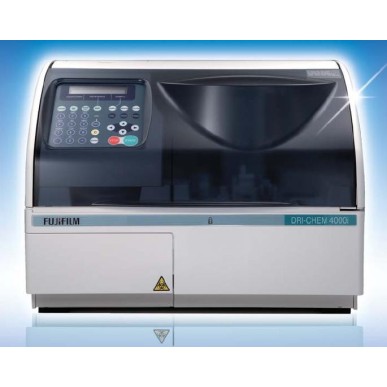

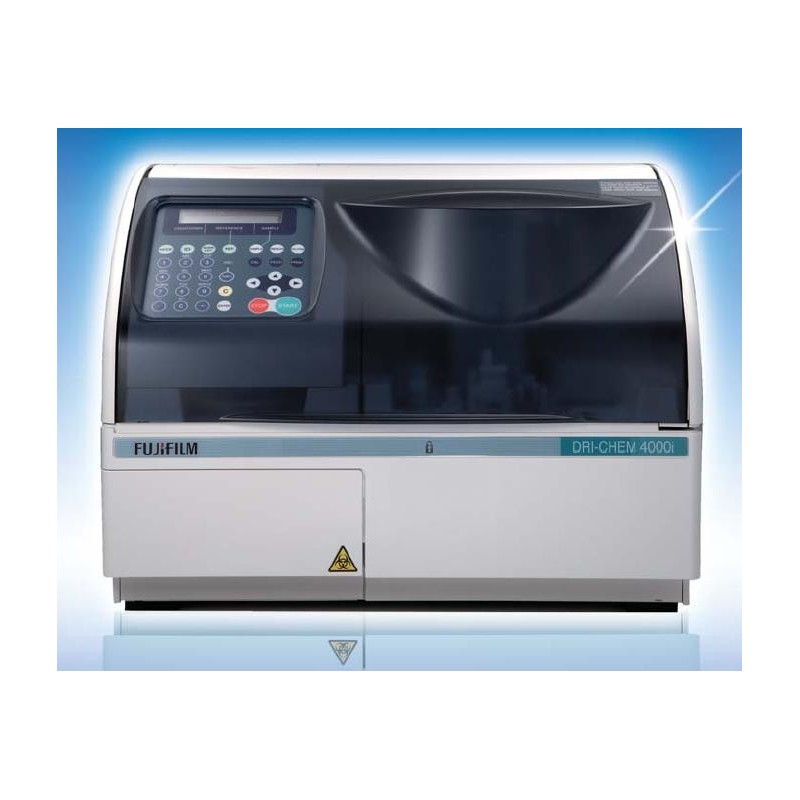

Fuji DRI-CHEM 4000i
Fujifilm's Fuji DriChem 4000i is a fully automatic analyzer for more convenient and reliable on-site performance, featuring remarkable turn around time response and wider network system capability.
- Easy calibration with QC card system
- Auto dilution function
- Built-in electrolyte measurement function
info Ανάλογα με το ύψος της παραγγελίας και τη συχνότητα διαμορφώνονται και οι τελικές τιμές. Μιλήστε με έναν εκπρόσωπό μας για λεπτομέρειες
The system has two major principles of measurement, one is colorimetric and the other is potentiometric.
Parameters
|
Classification |
Parameter |
Measurement range |
Measurement |
|||
|
Unit (A) |
Unit (B) |
|||||
|
Biochemical tests (Enzymes) |
ALP |
50-3500 |
U/L |
0.84-58.45 |
µkat/L |
4 |
|
AMYL |
10-1800 |
U/L |
0.17-30.06 |
µkat/L |
5 |
|
|
CHE |
5-500 |
U/L |
0.08-8.35 |
µkat/L |
4.5 |
|
|
CKMB |
1-300 |
U/L |
0.02-5.01 |
µkat/L |
5 |
|
|
CPK |
10-2000 |
U/L |
0.17-33.40 |
µkat/L |
4 |
|
|
GGT |
10-1200 |
U/L |
0.17-20.04 |
µkat/L |
5 |
|
|
GOT/AST |
10-1000 |
U/L |
0.17-16.70 |
µkat/L |
4 |
|
|
GPT/ALT |
10-1000 |
U/L |
0.17-16.70 |
µkat/L |
4 |
|
|
LAP |
10-500 |
U/L |
0.17-8.35 |
µkat/L |
4 |
|
|
LDH |
50-900 |
U/L |
0.84-15.03 |
µkat/L |
2 |
|
|
Biochemical tests |
ALB |
1.0-6.0 |
g/dL |
10-60 |
g/L |
6 |
|
BUN |
5.0-140.0 |
mg/dL |
1.79-49.98 |
mmol/L |
4 |
|
|
Ca |
4.0-16.0 |
mg/dL |
1.00-4.00 |
mmol/L |
4 |
|
|
CRE |
0.2-24.0 |
mg/dL |
18-2122 |
µmol/L |
5 |
|
|
DBIL |
0.1-16.0 |
mg/dL |
2-274 |
µmol/L |
5 |
|
|
GLU |
10-600 |
mg/dL |
0.6-33.3 |
mmol/L |
6 |
|
|
HDL-C |
10-110 |
mg/dL |
0.26-2.84 |
mmol/L |
6 |
|
|
IP |
0.5-15.0 |
mg/dL |
0.16-4.84 |
mmol/L |
5 |
|
|
Mg |
0.2-7.0 |
mg/dL |
0.08-2.88 |
mmol/L |
4.5 |
|
|
NH3 |
10-500 |
µg/dL |
7-357 |
µmol/L |
2 |
|
|
TBIL |
0.2-30.0 |
mg/dL |
3-513 |
µmol/L |
6 |
|
|
TCHO |
50-450 |
mg/dL |
1.29-11.64 |
mmol/L |
6 |
|
|
TG |
10-500 |
mg/dL |
0.11-5.65 |
mmol/L |
4 |
|
|
TP |
2.0-11.0 |
g/dL |
20-110 |
g/L |
6 |
|
|
UA |
0.5-18.0 |
mg/dL |
30-1071 |
µmol/L |
4 |
|
|
Biochemical tests (Electrolytes) |
Na |
75-250 |
mEq/L |
75-250 |
mmol/L |
1 |
|
K |
1.0-14.0 |
mEq/L |
1.0-14.0 |
mmol/L |
||
|
Cl |
50-175 |
mEq/L |
50-175 |
mmol/L |
||
|
Immunological test |
CRP |
0.3-7.0 |
mg/dL |
3-70 |
mg/L |
5 |
Main Specifications
|
Measurement tests |
Colorimetry: 26 tests |
|
Throughput |
Colorimetry: 60 tests/hour |
|
TAT |
Time required for 6 tests: 8min 42sec. |
|
Number of sample racks |
1 |
|
Number of incubations |
Colorimetry: 6, Electrolytes: 1 |
|
Measurement time |
Colorimetry: 2 to 6 minutes/test, |
|
Sample types |
Plasma, Serum, Whole blood (NH3-W,Na-K-Cl) |
|
Sample volume |
Colorimetry: 10 µL/ test, |
|
Data transmission to PC |
USB 2.0 or RS-232C serial |
|
Data printing |
Thermal printer |
|
Electrical requirements |
AC 100-240V, 50/60 Hz, 200VA |
|
Dimensions |
415 (W) x 390 (D) x 290 (H)mm |
|
Weight |
Approx. 20 kg |
|
Operating temperature |
15 to 32 °C |
|
Operating humidity |
30 to 80 %RH |
