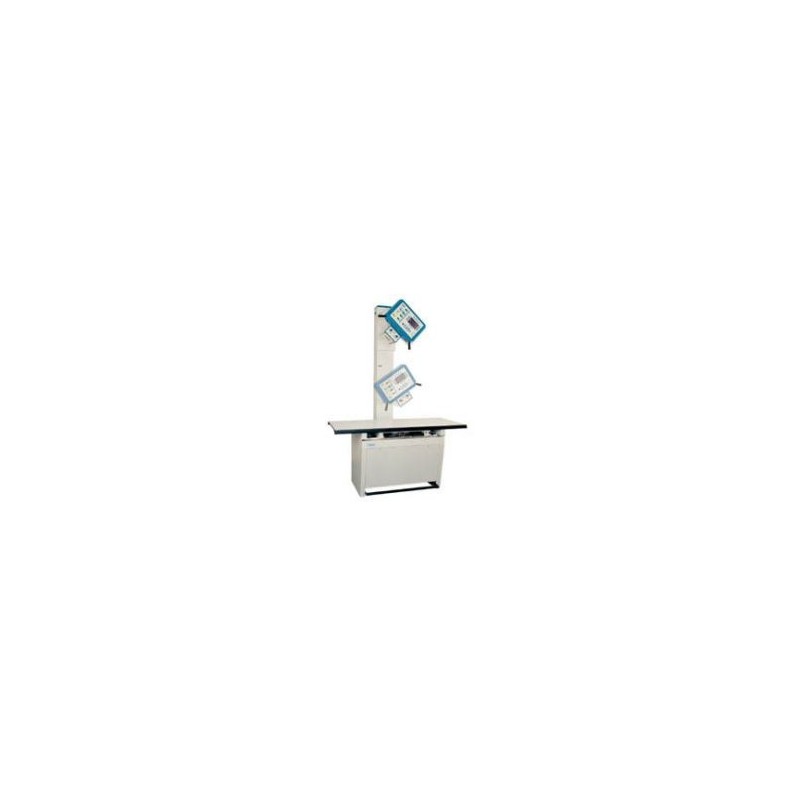

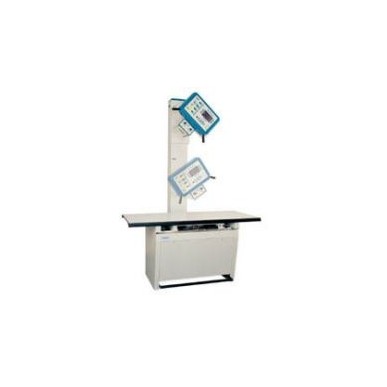

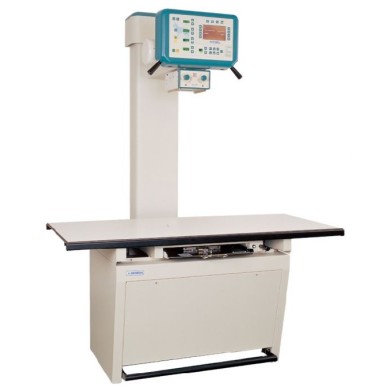

Sedecal Conventional System VARIABLE FOCAL DISTANCE
S1VFD330
For a wide range of animals SEDECAL offers a full variable Focal Film Distance tube-stand, which may be coupled with either the stretcher table or 4-way table.
X-ray generator power range: 32KW
info Ανάλογα με το ύψος της παραγγελίας και τη συχνότητα διαμορφώνονται και οι τελικές τιμές. Μιλήστε με έναν εκπρόσωπό μας για λεπτομέρειες
Specifications
●
|
CONSTANT POTENTIAL POWER RATINGS (*) |
32 kW |
|||
|
kVp RANGE In kVp STEPS |
40 TO125 |
|||
|
mA STATTIONS
ACCURACY |
10, 12'5, 16, 20, 25, 32, 40, 50, 64, 80, 100, 125,160, 200, 250, 400 |
|||
|
EXPOSURE TIME RANGE |
0.001 - 10 SECONDS |
|||
|
mAs RANGE |
0.1 - 500 MAS |
|||
|
AUTOMATIC EXPOSURE CONTROL(A.E.C) |
OPTIONAL |
|||
|
ANIMAL PROGRAMME RADIOGRAPHY (A.P.R.) |
STANDARD - (330 ANATOMICAL VIEWS) |
|||
|
FOCAL SPOTS: 1.0/2.0 MM |
|||
|
LINE VOLTAGE PHASES |
220/240/380/415/440/480 - (50/60HZ) - 1 PHASE / 3 PHASE |
|||
|
FOCAL FILM DISTANCE RANGE |
300-1,200 MM / 11.8-47.2 INCHES (SMOOTH AND CONTINOUS ADJUSTMENT) |
|||
|
FOOT PRINT |
2,6 M2 (EQUIPMENT+ ACCESS AREA)(28 sq.Ft) |
|||
|
TOTAL WEIGHT (X RAY Generador included) |
360 KG(794 lb) |
S1VFD330
